Building a slab on Wyndham Vale's volcanic plain clay
Why the slab pre-pour inspection carries extra weight on basalt clay, and what we check before the concrete arrives.
In short: Reactive clay moves with moisture. The slab is designed for it, but only if it is built the way it was drawn.
Clay that swells and shrinks
Clay that forms over basalt on the Western Volcanic Plain is commonly reactive. It takes up water and swells in wet months, then dries and shrinks in summer. A house slab sitting on it has to tolerate that movement without cracking.
How the slab copes
A waffle raft slab spreads load across a grid of stiffening beams between polystyrene pods. The engineer sizes those beams for the site class in your soil report. A beam poured narrower than drawn is weaker exactly where the design relies on it.
What we look at before the pour

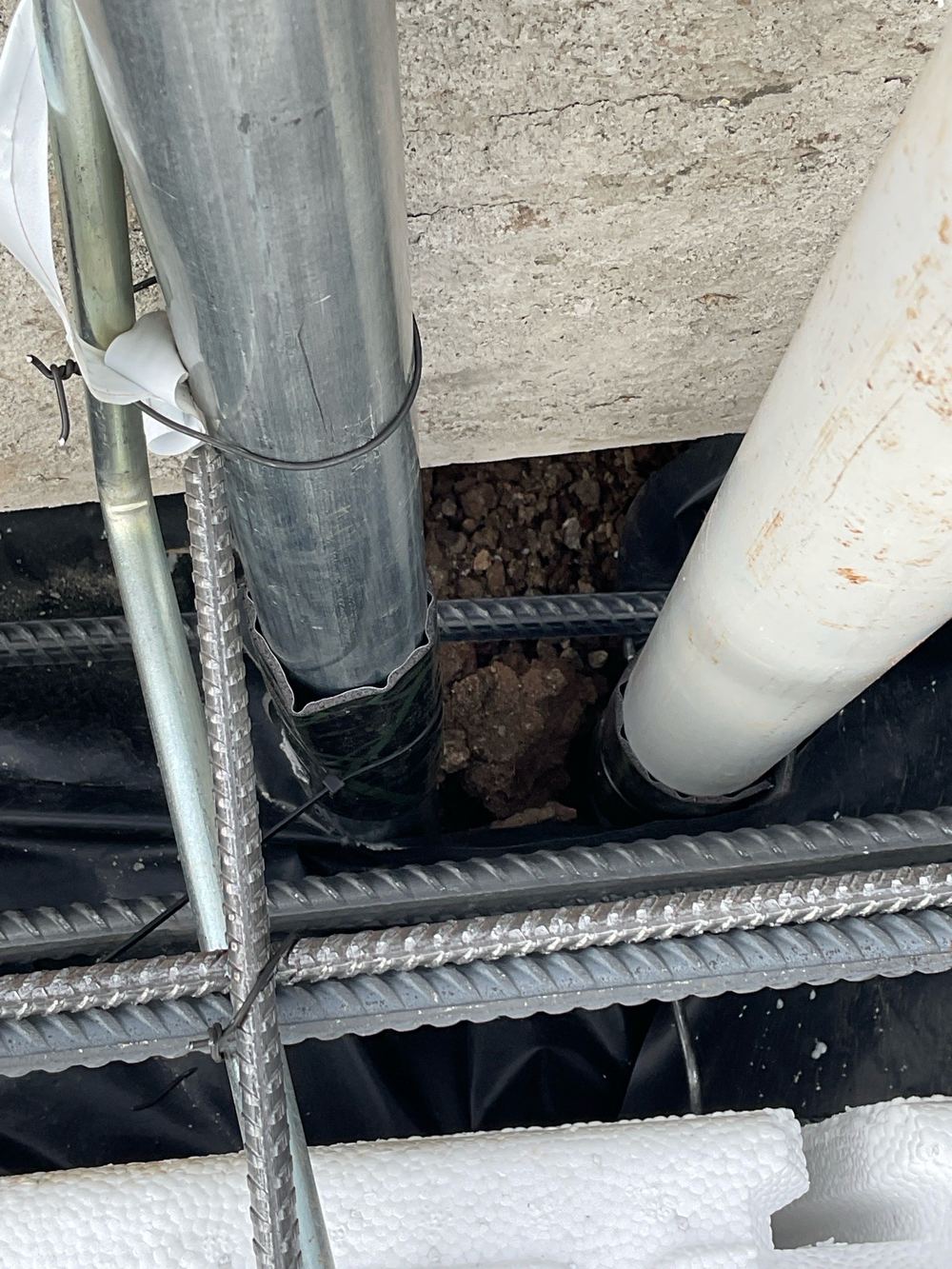

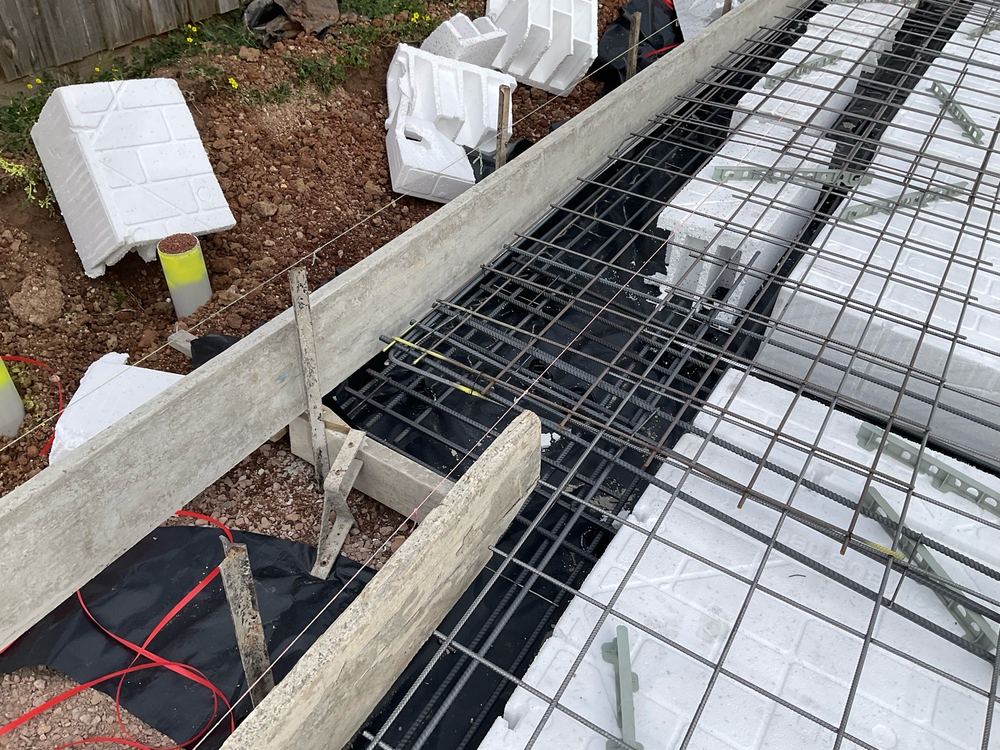

Beam widths and pod positions against the engineering, mesh support so the steel sits at the right height, underlay running continuously under slab and beams with every penetration taped, and termite collars on plumbing.
A real example nearby

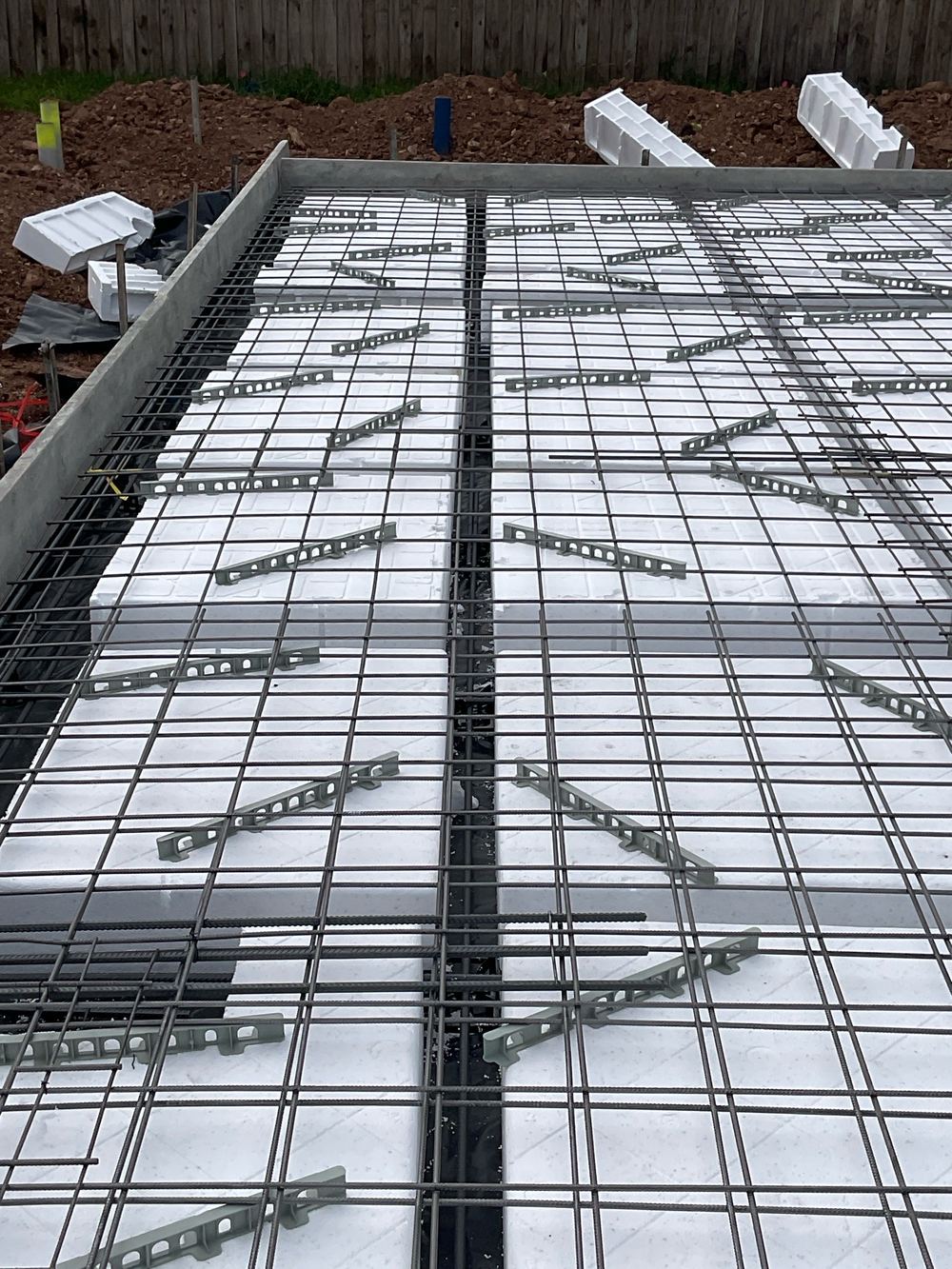

On a Hoppers Crossing slab we found an internal beam only 50mm wide where the engineering called for 110mm. It was corrected before the pour. After the pour it would have been permanent.
After the slab
Once the house is up, keep the ground falling away from it and connect every downpipe. A slab built correctly can still be stressed by water pooling against one side.
Written by our local inspection team from work carried out in Wyndham Vale. Licensed building practitioners, Building & Plumbing Commission registration CDB-U 53425.
